BIO-CIRCLE TURBO 1200

BIO-CIRCLE TURBO 1200

G43027

The perfect combination of the precision of manual cleaning and the efficiency of an automatic cleaning system. In the manual cleaning mode, the flow brush can be used for cleaning parts geometries that are difficult to reach. In the automatic mode, the system will clean fully automatically.

  • 2 in 1 – combination of manual and automatic cleaning, depending on the requirements
  • Optimal in combination with the self-recycling BIO-CIRCLE Liquids
  • Automatic cleaning pressure of 4 bar
  • Made of solid V2A stainless steel

Product Details

Wherever a cleaning system is faced with a variety of requirements, the BIO-CIRCLE Turbo will be...more
BIO-CIRCLE TURBO 1200

Wherever a cleaning system is faced with a variety of requirements, the BIO-CIRCLE Turbo will be your device of choice. With its innovative combination of manual cleaning with a flow brush and automatic cleaning as you know it from a hot-water parts washer it will fulfil any requirement.

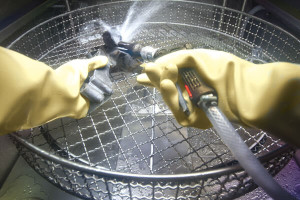

In manual cleaning mode you can clean complex parts geometries that in the automatic mode of a conventional automatic cleaning system would be difficult to clean or not at all. For this, the user has the ergonomic hand spray gun at their disposal. With its quick-release fastener this can be used with either a cleaning brush or a variable cleaning nozzle. The cleaning nozzle can either generate a point jet to remove contaminations from points that are difficult to reach, or a fan-shaped jet that is ideal for cleaning smooth surfaces. Afterwards, a pneumatic spray gun facilitates fast drying.

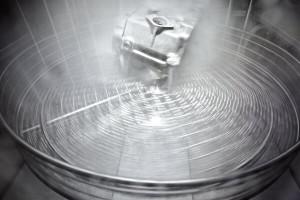

Automatic cleaning is as efficient as you know it from automatic cleaning systems. A timer can be adjusted to the precise requirements on cleaning time. The spinning rack in combination with a spray pressure of 4 bar and a factory-set temperature of 50°C/122°F (adjustable between 40 and 55°C 104 to 131°F, please contact us for other temperatures if needed) facilitates effective cleaning of components of any kind.

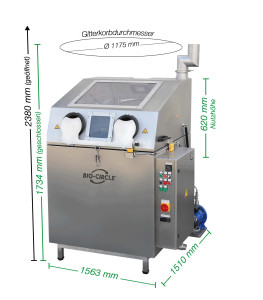

Like the entire device, the stainless steel rack with diameters between 775 and 1175 mm consists of solid V2A steel and features a payload of 350 kg. If necessary, the payload can be extended to 1,000 kg. The device features a touch button to spin the rack in idle mode for easy loading and unloading.

The BIO-CIRCLE Turbo has two pumps: one 4 bar pump for automatic cleaning and one 1.5 bar pump for manual applications.

A safety switch prevents the pumps form running with the lid open. Moreover, automatic cleaning will only work if the gauntlets for manual cleaning are closed in order to eliminate the risk of injuries.

The following cleaners are suited for the BIO-CIRCLE Turbo:

  • BIO-CIRCLE L Turbo
  • BIO-CIRCLE L Ultra F
  • CB 100 range
  • STAR and ALUSTAR ranges

Related links to "BIO-CIRCLE TURBO 1200"

Technical specificationmore

Technical specification

Type of contamination: Carbon residues, soot, Corrosion protection, Dust, abrasion particles, Limescale, rust (mineral), Oil, grease, Polishing pastes, Resin, wax, Separating agents, Soldering agent
Menge der Teile: Individual parts, Small series, small quantities
Bauteilgeometrie: Scooping parts, Uncomplicated parts
Being a universally applicable cleaning device, the BIO-CIRCLE Turbo can be used wherever a...more

Field of application

Being a universally applicable cleaning device, the BIO-CIRCLE Turbo can be used wherever a variety of different requirements on the ideal cleaning device come together, from Maintenance, where different components have to be cleaned efficiently, to Production, where particularly complex or diverse parts are made.

Simple components without complex geometries can easily be cleaned in automatic mode. The...more

Usage

Simple components without complex geometries can easily be cleaned in automatic mode. The sophisticated Bio-Circle cleaning agents guarantee optimal efficiency and short cleaning times. The timer can be adjusted individually and can thus meet individual requirements.

Complex components with difficult geometries can be pre-cleaned automatically. Finishing will then be done in manual mode: the versatility provided by brush and point- and fan-shaped jet will facilitate fast manual cleaning.

After the cleaning process, excess cleaning agent can be blown off the component by means of a pneumatic spray gun. This will reduce cleaning agent discharge losses to a minimum.
