PROLAQ Auto

G90050

The manual and automatic cleaning station

PROLAQ Auto is a manual and automatic cleaning system for the removal of undried paint and varnish residues from varnish application- and varnish processing tools.
In the integrated automatic box, flow cup guns are cleaned automatically, while other paint guns are simultaneously pre-cleaned by means of the flow brush in the stainless steel basin. The unique 3-stage treatment extends the service life of the cleaning fluid used.

  • Automatic box for cleaning flow cup guns
  • Low-maintenance AODD pump, 6 bar
  • Recycling system (filter + recirculation jerrican)
  • SATA- approved

Produkt aufrüsten

Product Details

Automatic stainless steel cleaning station paint guns, hoses, and flow cup guns. PROLAQ Auto is...more
PROLAQ Auto

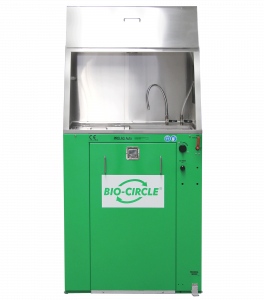

Automatic stainless steel cleaning station paint guns, hoses, and flow cup guns.
PROLAQ Auto is an all-in-one system that facilitates both manual and automatic cleaning.
PROLAQ Auto is particularly suited if there are numerous colour changes and hence frequent varnishing equipment cleaning processes.

The all-in-one system in combination with the appropriate PROLAQ L 100 and PROLAQ L 500 cleaners is cost-efficient and protects the employees’ health and the environment.

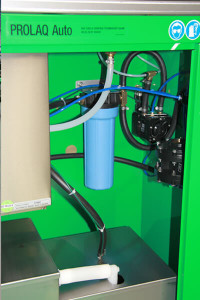

What makes the PROLAQ systems special is the 3-stage treatment system. It consists of pre-filter, coarse- and fine filter and processes the cleaner by means of the recirculation system, extending the cleaners’ service life.

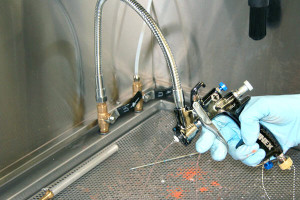

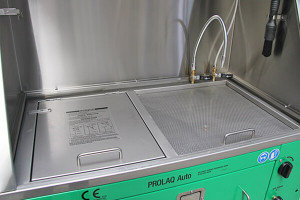

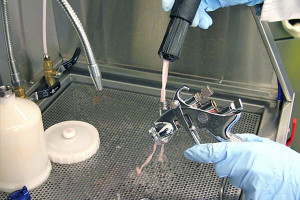

The adapted cleaning basin with flow brush is perfect for manual cleaning or pre-cleaning. A footswitch-actuated spray nozzle facilitates paint gun rinsing with clear liquid. The flow rate/speed is adjusted by means of a ball valve. The overflow basin with a second ball valve facilitates removing of the varnish residues and hence cleaning the basin.

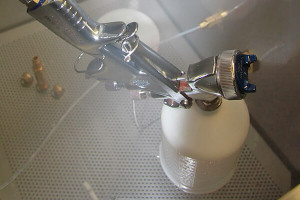

The integrated automatic box consists of prefabricated compartments for posing the dismantled flow cup gun. The gun is connected and then rinsed with the fluid for 3 minutes. For final cleaning, 200 ml of clean fluid run through the flow cup gun. Subsequently, the included compressed air gun is used for drying.

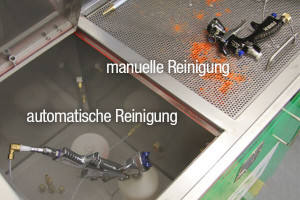

Being able to clean one flow cup gun automatically while simultaneously pre-cleaning another gun manually in the basin not only saves costs but also helps using the employee’s worktime more efficiently.
The cleaning unit features a built-in trolley with integrated collection tray for easy filling of the vessels or easy change of the cleaning agent.
Varnish residues can be drained into the grid and the integrated funnel, and are disposed of in a separate jerrican.

  • Time-saving and thorough cleaning
  • Functional magnetic fixture
  • Optimized design for good splash protection
  • Parallel cleaning of gun and cup
  • Recycling system (filter + recirculation jerrican)
  • Low-maintenance AODD pump, 6 bar
  • Automatic box
  • SATA-approved

Related links to "PROLAQ Auto"

Technical specificationmore

Technical specification

Type of contamination: Varnish
Menge der Teile: Individual parts, Small series, small quantities
Bauteilgeometrie: Scooping parts, Uncomplicated parts, Whole components (without dismantling)

MATCHING CLEANERS

  • PROLAQ L 100
    Details
    Water-based varnish remover for varnishing systems  PROLAQ L 100 is a...
    • Plastic barrel 200 l
    • IBC 1000 L
    • plastic jerrican 20 L
  • PROLAQ L 500
    Details
    Varnish remover for varnish application- and varnish processing tools ...
    • Plastic barrel 200 l
    • IBC 1000 L
    • plastic jerrican 20 L
