PROLAQ Compact

G90010

Manual cleaning system for all varnish application- and varnish processing tools

The mobile PROLAQ Compact is a system for the manual cleaning of flow cup- and paint guns, and other varnish processing tools.
The low-maintenance 6-bar AODD pump built into the technology module serves to dry the cleaned varnishing tools.

  • Compact design
  • Recycling system by means of filter and basin
  • AODD pump, 6 bar

Product Details

Manual cleaning system for flow cup guns and guns with external material supply. The PROLAQ...more

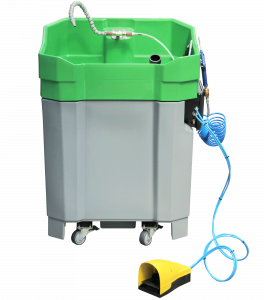

PROLAQ Compact

Manual cleaning system for flow cup guns and guns with external material supply.
The PROLAQ Compact can be used flexibly for the cleaning of small to medium-sized items. The system works without electricity and features a flow brush, a compressed air gun and a funnel for draining the gun.

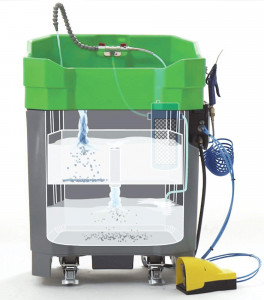

The unique 3-stage treatment with coarse filter, sedimentation tank and fine filter extends the cleaners’ service life.
The enormous efficiency of the device guarantees cost savings in comparison to conventional devices.

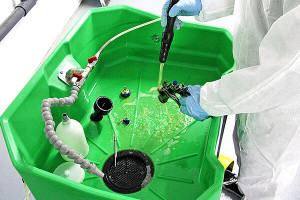

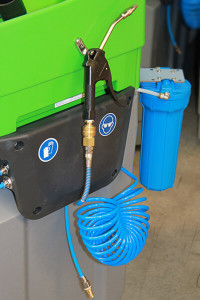

The sturdy plastic (PE) device features an ergonomic design and high stability. The technical module is low-maintenance and features an AODD pump and a compressed air connection. With the compressed air gun, the varnishing tools can be dried after cleaning. Actuating the foot switch transports the cleaning fluid through the flow brush for removing varnish residues from paint guns, hoses, paintbrushes and paint rollers.

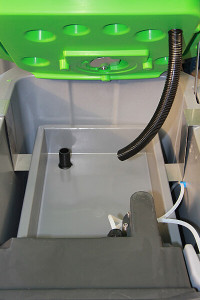

Remaining varnish residues can be removed from the paint gun fast and easily through the drain in the bottom. The varnish residues gather in the stabilization basin, and the cleaner is reprocessed by the double filter. The varnish residues can then be removed from the sedimentation basin with a cloth.

The mobility of the PROLAQ Compact makes changing workplaces easy. The system can be used in for explosion-proof areas, thus saving costs. Using the PROLAQ L 100 and PROLAQ L 500 cleaners in combination with the PROLAQ Compact makes the work process easier and contributes to making work more efficient.

  • Compact design
  • Comfortable working height
  • AODD pump, 6 bar
  • Compressed air connection
  • Collection tray for varnish particles
  • Splash guard lid (optional extra)
  • Compressed air gun for fast drying
  • Recycling system by means of filter and basin
  • Incl. mobility kit
  • Double filter (coarse-, fine-, and cartridge filter)
  • Funnel for rinsing
  • Mobile system

Related links to "PROLAQ Compact"

Seals of approval
For further information, please contact your Bio-Circle partner
Technical specificationmore

Technical specification

Type of contamination: Farbe, Varnish
Amount of parts: Individual parts
Seal of approval: Bio-Circle Service available

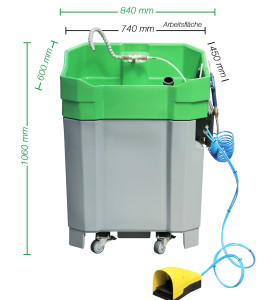

Usable work surface :700 x 480 mm
Working height:970 / 800 mm
Filling quantity maximum :20 L
Füllmenge maximal:60 L
Width:600 mm
Tank material:Werkstoff PE LD
Pump:Druckluftmembranpumpe PTFE Membran
Flow rate:8 l/min
Temperature (preset):Raumtemperatur
Total weight of the machine without tank filing:85 KG
Lackierwerkstätten: Ideal für Lackierwerkstätten zur manuellen Reinigung von...more

Field of application

  • Lackierwerkstätten: Ideal für Lackierwerkstätten zur manuellen Reinigung von Fließbecherpistolen und Pistolen mit externer Materialversorgung.

  • Automobilindustrie: Geeignet für den Einsatz in der Automobilindustrie zur Entlackung und Reinigung von Lackierwerkzeugen.

  • Handwerksbetriebe: Flexibles Reinigungssystem für Handwerksbetriebe, die Lackierarbeiten durchführen.

  • Werkstätten und Produktionsstätten: Anwendbar in Werkstätten und Produktionsstätten für die Reinigung von Lackierutensilien.

  • Kleinere Lackierbetriebe: Perfekt für kleinere Lackierbetriebe, die manuelle Entlackungslösungen benötigen.

Manuelle Entlackung von Lackierpistolen: PROLAQ Compact eignet sich besonders für die...more

Usage

  • Manuelle Entlackung von Lackierpistolen: PROLAQ Compact eignet sich besonders für die manuelle Reinigung von Fließbecherpistolen und Pistolen mit externer Materialversorgung.

  • Reinigung von Lackierwerkzeugen: Ideal für die Reinigung verschiedener Lackierwerkzeuge, einschließlich Pistolen, Pinsel und Rollen.

  • Entlackung von Lackierutensilien: Effiziente Entlackung von Lackierutensilien wie Pistolen, Schläuche, Pinsel und Rollen.

Die passenden Reiniger: PROLAQ L 100, 400 und 500
