Foam Injector for 200 l

G84003-08

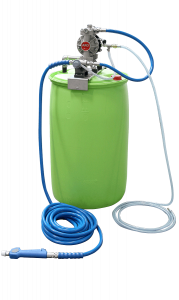

The Foam Injector is easy to use, almost maintenance-free, with 10 m hose and foam lance – the perfect tool for cleaning large areas. The firm and long-lasting foam dissolves stubborn dirt, even on vertical surfaces, depending on how the cleaner works.

  • Compressed air: 6.5 to 7.5 bar adjustable
  • Efficiency: 3.1 m² per minute
  • With compressed-air diaphragm pump

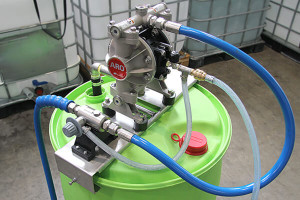

  • Incl. adapter for mounting on 200 L drum
  • Suitable for foaming cleaners, pH 0 to 14

Product Details

✔  Foam sprayer with foam lance for cleaning large surfaces ✔  For foaming...more
Foam Injector for 200 l

✔ Foam sprayer with foam lance for cleaning large surfaces
✔ For foaming cleaners (pH 0 to 14), e.g. UNO S V, FOR CLEAN or Power Cleaner 200
✔ Easy to operate, virtually maintenance-free
✔ Foam lance with 10 m hose
✔ Incl. adapter for mounting on 200 L drum
✔ Safe working due to dosing valve, pressure reducer and needle valve
✔ Compressed air: 6.5 to 7.5 bar adjustable
✔ Spray efficiency: 3.1 m² per minute

Aplication-Systems_TAB-comparison

The foam injector

The injector housing is made of stainless steel. The injector has a connection for an air valve.

The mixing valve was developed to control the consistency of the foam in the injector. The aspirated cleaner is flushed with air in the foam injector. This process produces the foam, which is transported through the 10 m hose to the gun. The mixing valve is pivoted so that the hose nozzle can always be turned downwards. Once the desired foam consistency has been achieved, the adjusting wheel on the mixing valve can be removed and replaced with the enclosed cap nut. This prevents unwanted adjustments to the mixing valve.

Related links to "Foam Injector for 200 l"

Technical specificationmore

Technical specification

Ideal for foaming Bio-Circle cleaners (pH 0 to 14), e.g. UNO S V, FOR CLEAN or Power Cleaner...more

Field of application

  • Ideal for foaming Bio-Circle cleaners (pH 0 to 14), e.g. UNO S V, FOR CLEAN or Power Cleaner 200
  • Universal in use
  • Cleaning of large, also vertical, surfaces
Across all industries The consistency of the foam is controlled by the mixing valve before...more

Usage

  • Across all industries
  • The consistency of the foam is controlled by the mixing valve before it is transported through the 10 m hose to the gun.
