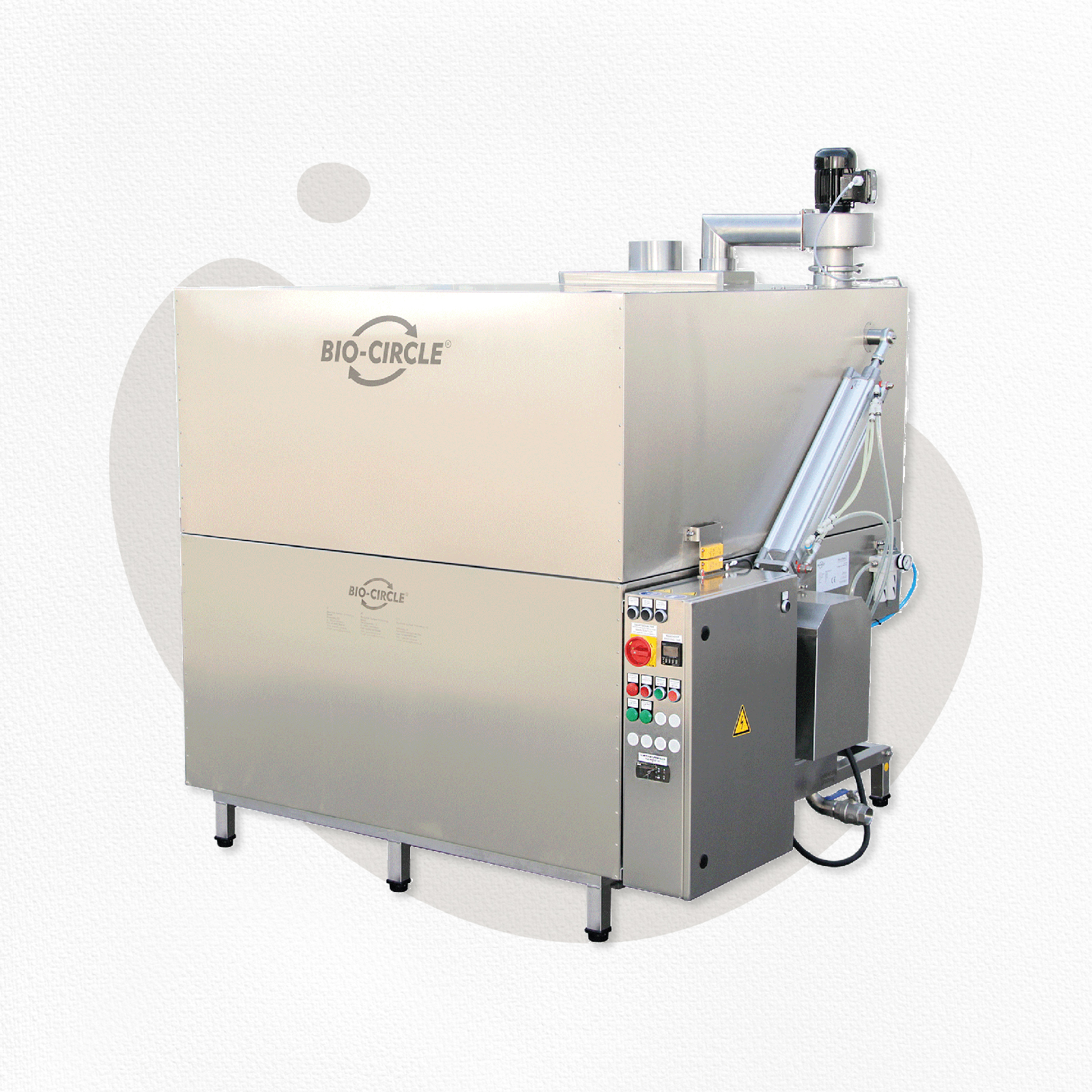

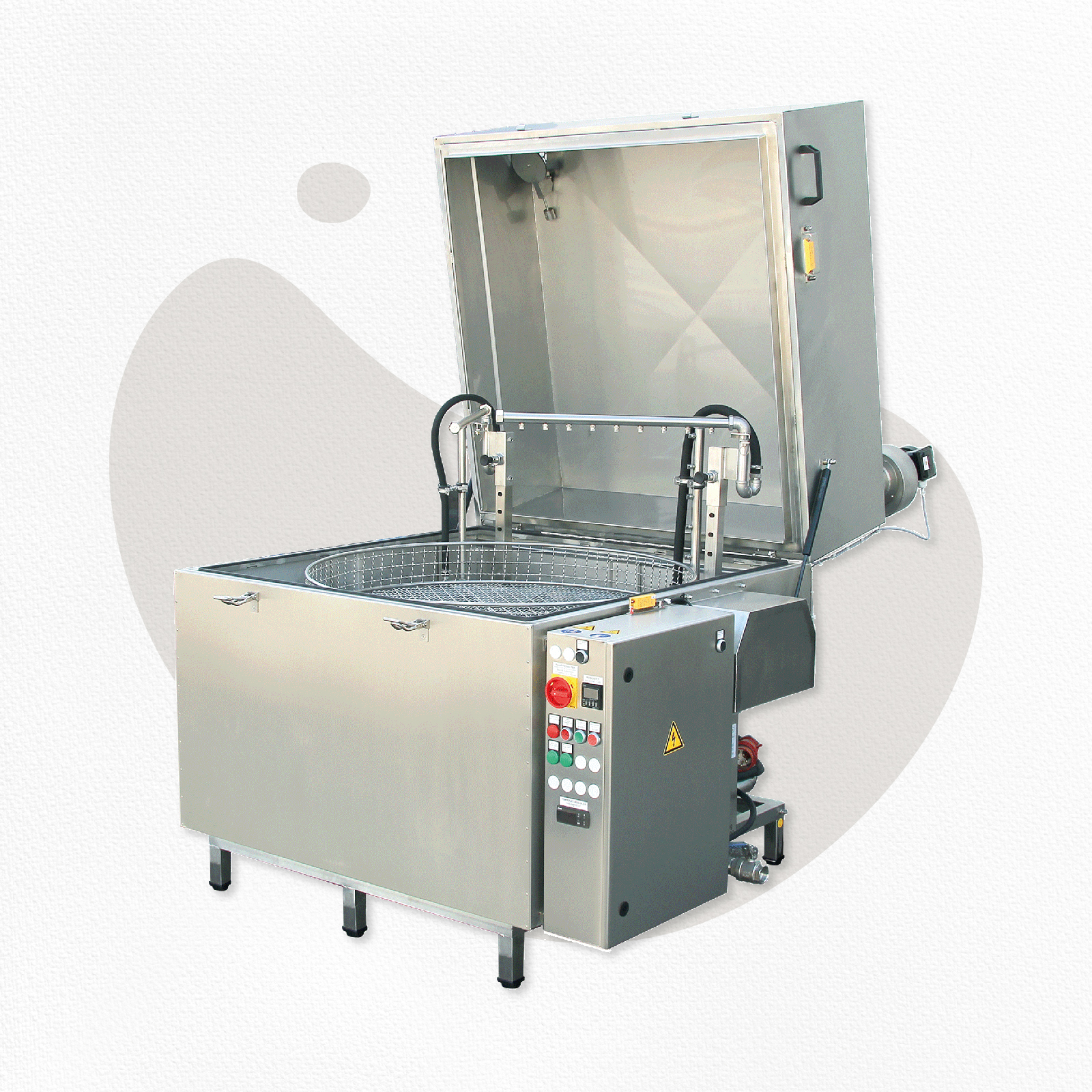

HTW 1000 Max Eco
Powerful high-pressure spraying system for thorough cleaning and degreasing!

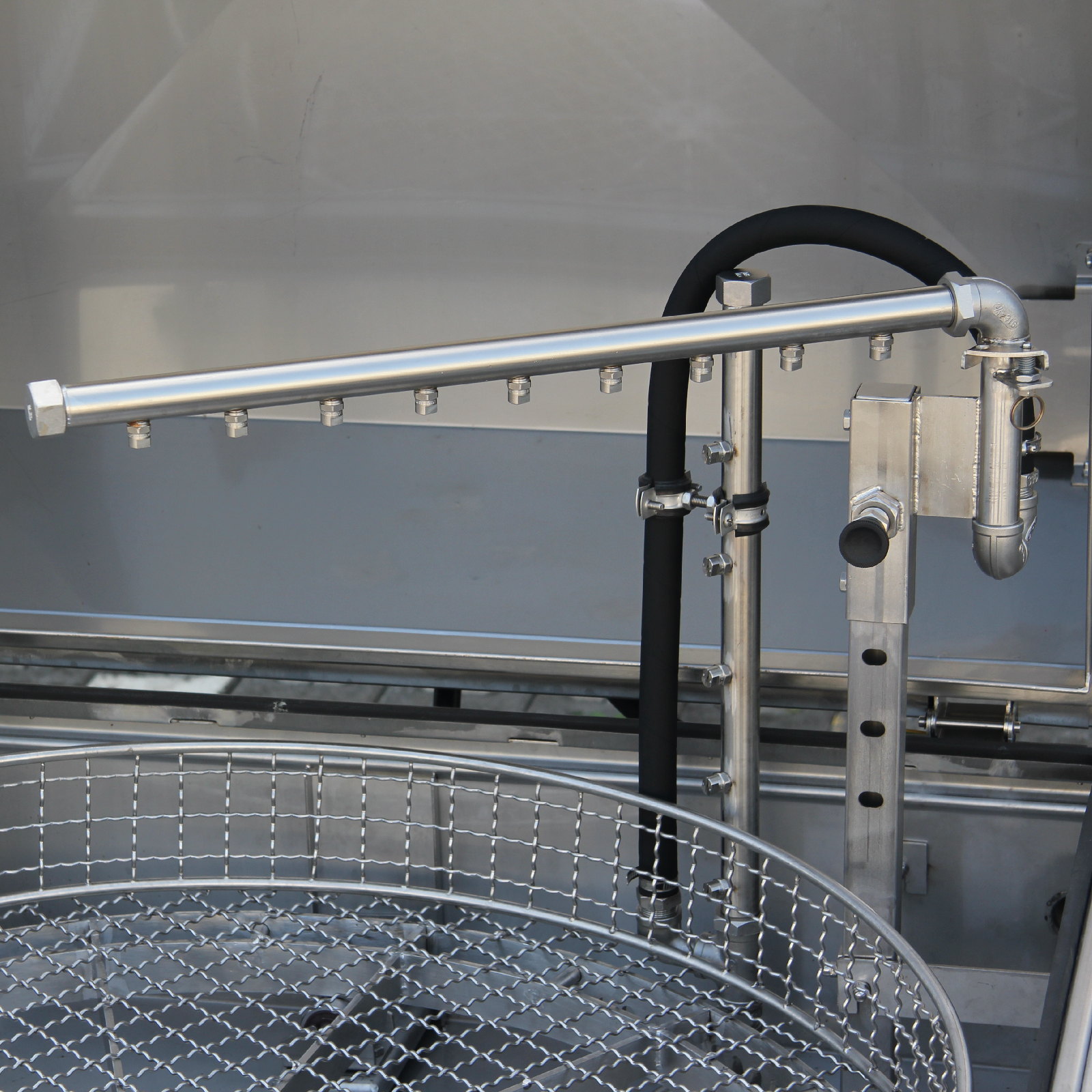

The maintenance-friendly high-pressure spraying system of the HTW-II hot water parts washer, equipped with a three-dimensional nozzle system, ensures thorough cleaning and degreasing of tools and other parts in maintenance, production, and manufacturing areas.
Product details
Description
Powerful high-pressure spraying system for thorough cleaning and degreasing!
The maintenance-friendly high-pressure spraying system of the HTW-II hot water parts washer, equipped with a three-dimensional nozzle system, ensures thorough cleaning and degreasing of tools and other parts in maintenance, production, and manufacturing areas.
The modular system of the HTW allows you to upgrade your hot water parts washer, completely made of stainless steel, according to your own requirements. The driven rotating basket and the spray pressure allow the Bio-Circle cleaners to act optimally on the cleaning good.
The HTW-II combines reliable quality with innovative technology. It is completely made of stainless steel, powerful, and easy as well as safe to operate and handle. This is also evident in the maintenance-friendly technology and practical equipment components.
All advantages of the hot water parts washer:
- Unbeatable cleaners: Variety of water-mixable and non-labeled cleaners tailored to your application.
- Risk-free testing: Rental machines and cleaners can be tested on-site; up to 3 months’ rent will be credited towards the purchase.
- Competent support: Reliable and competent support from the field service.
- High-quality technology: Electrically driven rotating basket with motor protection and powerful stainless steel pump.
- Robust construction: Completely made of stainless steel, maintenance-friendly, and durable.
- Energy efficiency: Optimized energy use and high efficiency.
- Safety and simplicity: Easy handling and safe operation.
- Corrosion protection: Temporary preservation of workpieces by corrosion protection for aqueous systems.
| PPT |
Hot Water Parts Washing Machine |
|---|---|
| Mechanical systems |
automatic |
| Quantity of parts |
Larger series, low quantities, Single Parts, Small Series |
| Component geometries |
Uncomplicated Parts, Whole Components (without Dismantling) |
| Quality seal Systems |
Bio-Circle Use, Service packages available, Stainless Steel |
| Available for Testing or Rental | Yes |
| Usage Rental Possible | Yes |
| Depth | 1420 mm |
| Loading Height | 830 mm |
| Basket Diameter Inside approx. | 975 mm |
| Basket Height | 115 mm |
| Maximum Usable Height | 400 mm |
| Maximum Filling Quantity | 300 L |
| Heating | 6 kW |
| Pump | 2,2 kW |
| Flow Rate | 12 m³/h |
| Delivery Head | 40 m |
| Maximum Load Crane Loading | 1000 kg |
| Total Weight without Tank Filling, Payload and Additional Equipment approx. | 360 kg |
| Frequency | 50 Hz |
- Industry-wide
- thorough cleaning and degreasing of tools and other parts
- in maintenance, production, and manufacturing areas.
