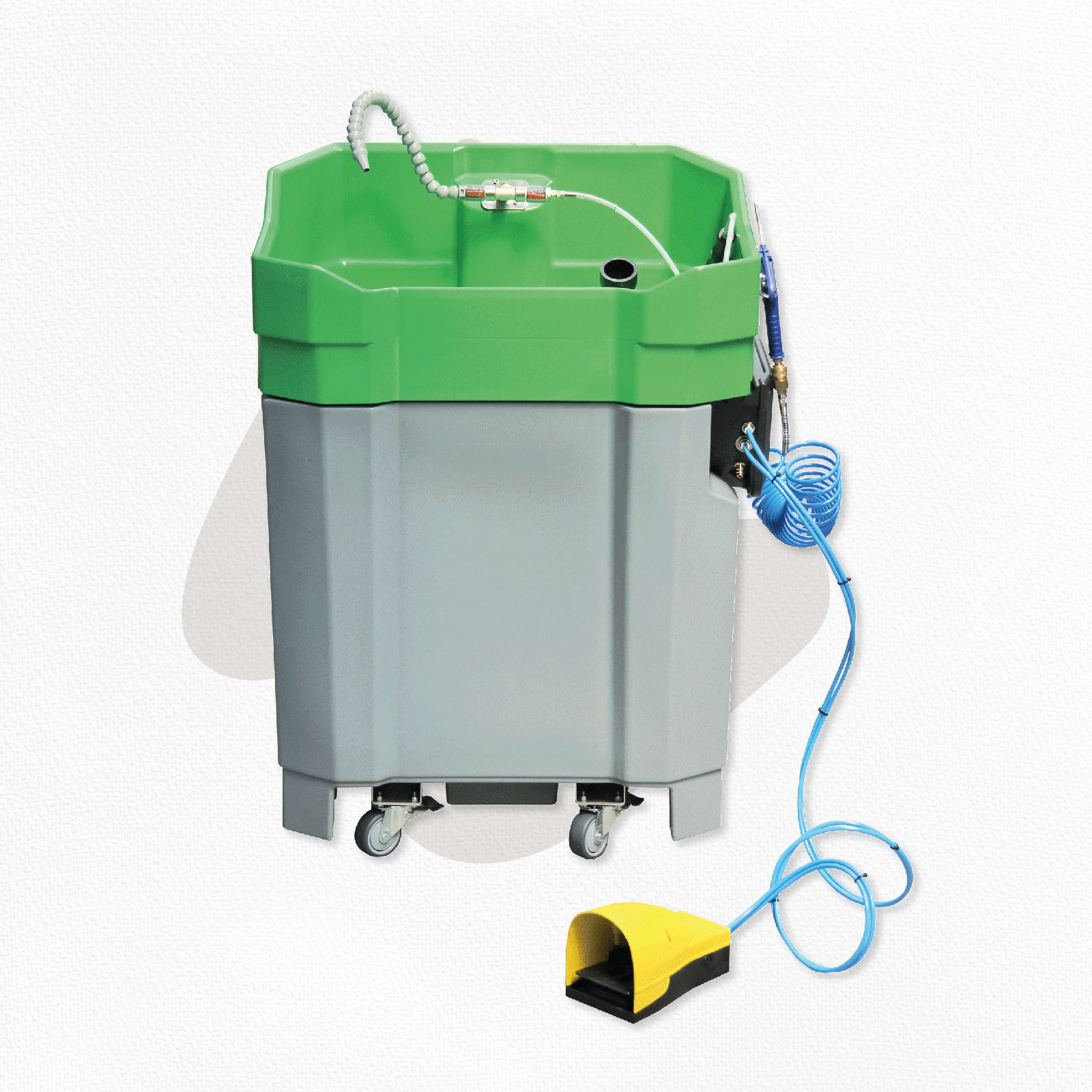

PROLAQ Compact
The PROLAQ Compact is an innovative cleaning system for manually removing paint from flow cup guns and guns with external material supply. This semi-automatic system operates without electricity and is flexible in use, making it a safe and economical solution for painters and businesses.
PROLAQ is a project funded by the US Department of Energy.
Product details
Description
Efficient and safe manual paint stripping!
PROLAQ Compact enables efficient and safe manual paint stripping. The system operates without electricity, making it particularly flexible and mobile. It is equipped with a compressed air gun for drying the cleaned parts and a funnel for emptying the gun.
By using VOC-reduced PROLAQ L paint strippers, PROLAQ Compact ensures a clean and safe workplace. The 3-stage treatment of the cleaning agent, consisting of a coarse filter, sedimentation tank, and fine filter, significantly extends the service life of the medium and contributes to the cost-effectiveness of the system.
The device is made of sturdy plastic (PE) and has an ergonomic design that offers a comfortable working height. The technical modules are designed for easy maintenance and are equipped with a 6 bar compressed air diaphragm pump and a compressed air connection.
All the advantages of the PROLAQ Compact:
- Clean and safe workplace: Thanks to the use of VOC-reduced PROLAQ L paint removers.
- Cost-effectiveness: Long service life of the medium thanks to a 3-stage treatment system.
- Flexibility: Operates without electricity, is mobile and can be set up anywhere, no Ex zone requirement.
- Efficient drying: Integrated compressed air gun.
- User-friendliness: Easy to use and maintenance-friendly design.
- Ergonomic: Compact design and comfortable working height.
- Mobile set: For easy transport and flexible installation.
- Double filter: Coarse, fine, and candle filters for optimal cleaning.
- Drip tray: For paint particles and optional splash protection function.
Upgrades and accessories:
| Mechanical systems |
manual |
|---|---|
| Quantity of parts |
low quantities, Single Parts, Small Series |
| Component geometries |
Collecting Parts, Uncomplicated Parts, Whole Components (without Dismantling) |
| Quality seal Systems |
Bio-Circle Use, Service packages available |
| Available for Testing or Rental | Yes |
| Usage Rental Possible | Yes |

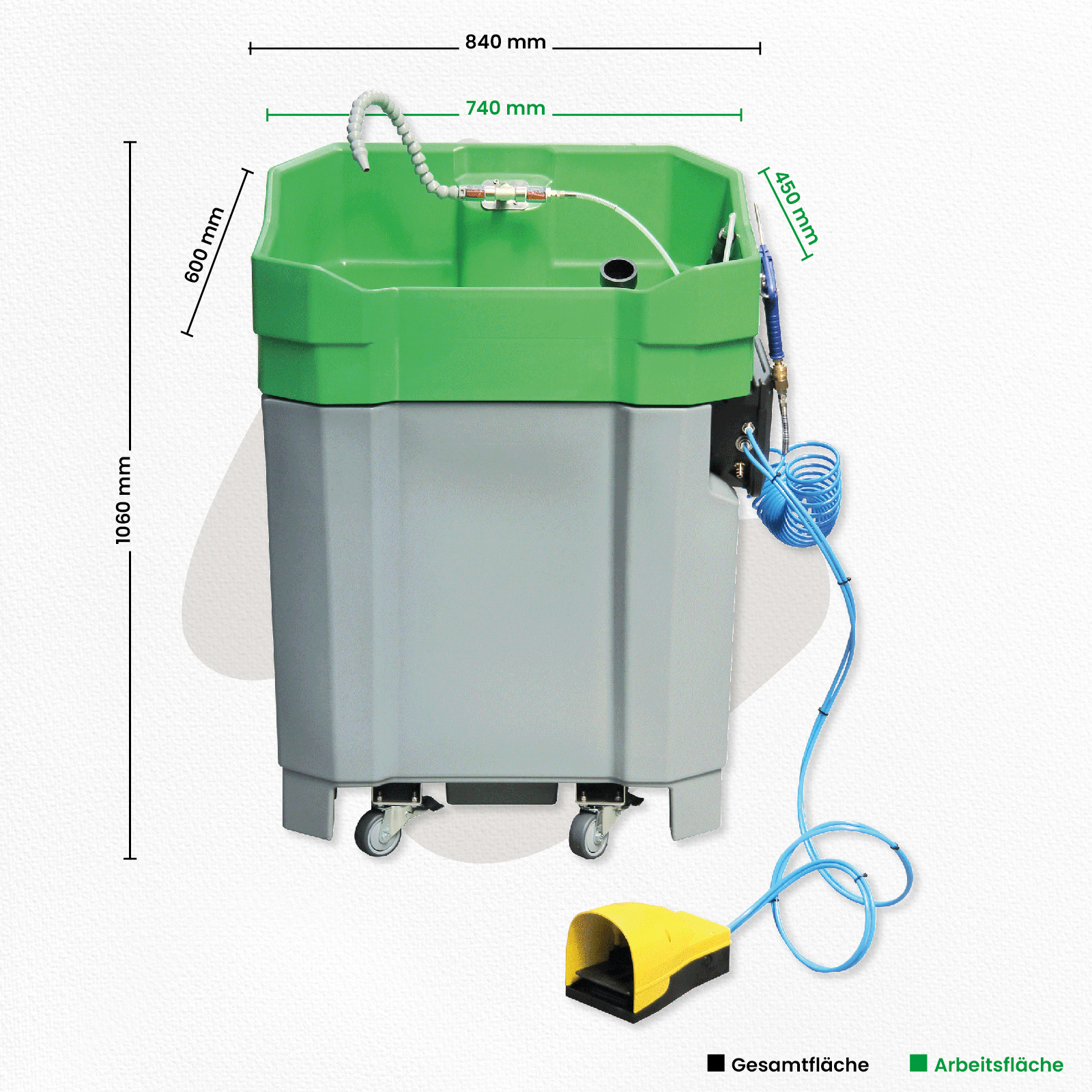

| Depth | 600 mm |
| Working Height | 970 / 800 mm |
| Usable Working Area | 700 x 480 mm |
| Load Capacity | 100 kg |
| Minimum Filling Quantity | 20 L |
| Maximum Filling Quantity | 60 L |
| Tank Material | Werkstoff PE LD |
| Pump | Druckluftmembranpumpe PTFE Membran |
| Flow Rate | 8 l pro Minute |
| Temperature (Preset) | Raumtemperatur |
- Paint shops: Ideal for paint shops for manual cleaning of flow cup guns and guns with external material supply.
- Automotive industry: Suitable for use in the automotive industry for paint stripping and cleaning of painting tools.
- Craft businesses: Flexible cleaning system for craft businesses that carry out painting work.
- Workshops and production facilities: Can be used in workshops and production facilities for cleaning painting utensils.
- Smaller paint shops: Perfect for smaller paint shops that require manual paint stripping solutions.
Hersteller:
Bio-Circle Surface Technology GmbH
Berensweg 200
33334 Gütersloh
Bio-Circle Surface Technology GmbH
Berensweg 200
33334 Gütersloh
