RWR 80 L KST Fully-Automatic SPS
The RWR 80 L KST fully automatic PLC is specially designed for the efficient cleaning of cooling channels in plastic injection molding tools. With its PLC control system, it offers an automated process and simple operation for optimal cleaning results.
Product details
Description
Fully automatic pipe cleaning system for internal circulation systems!

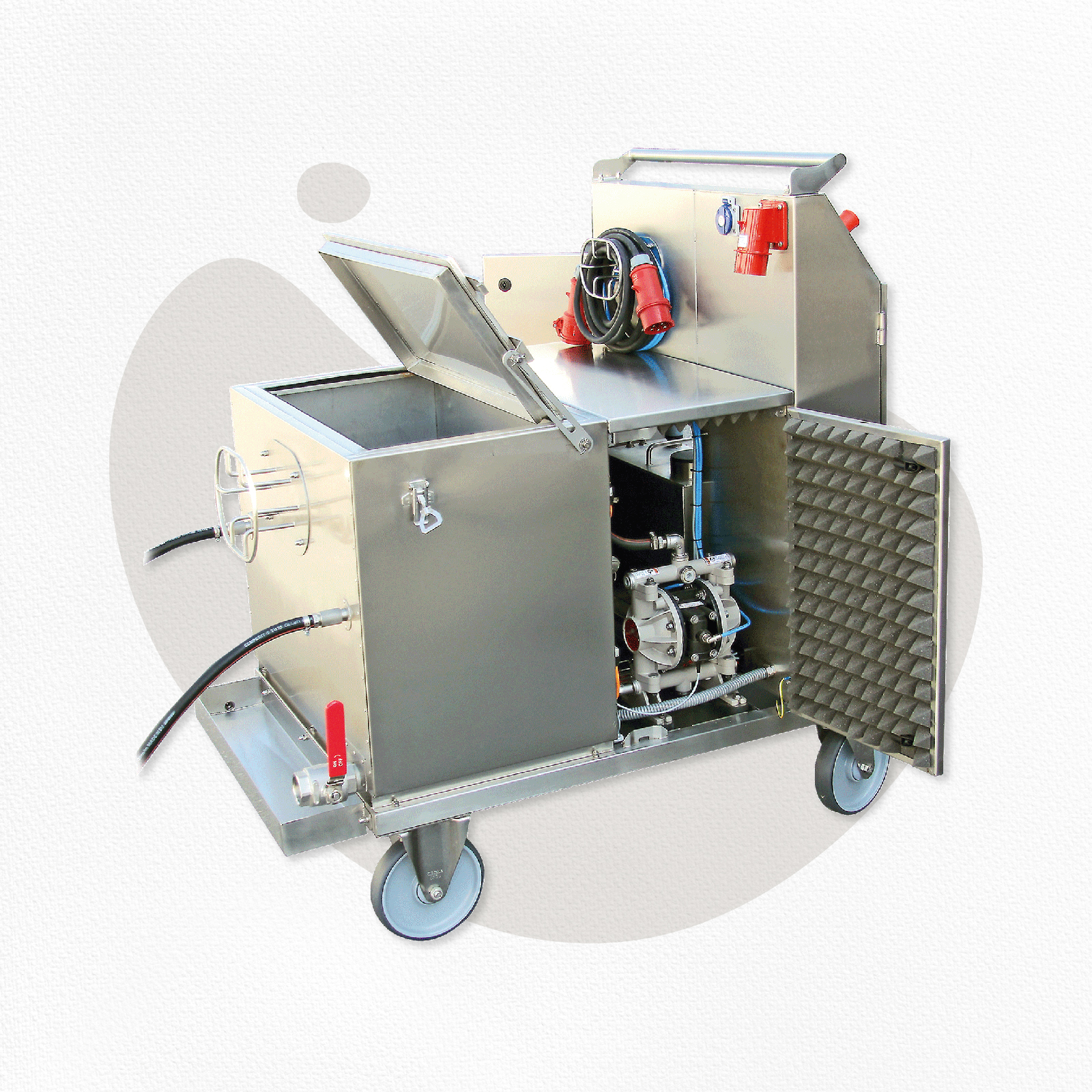

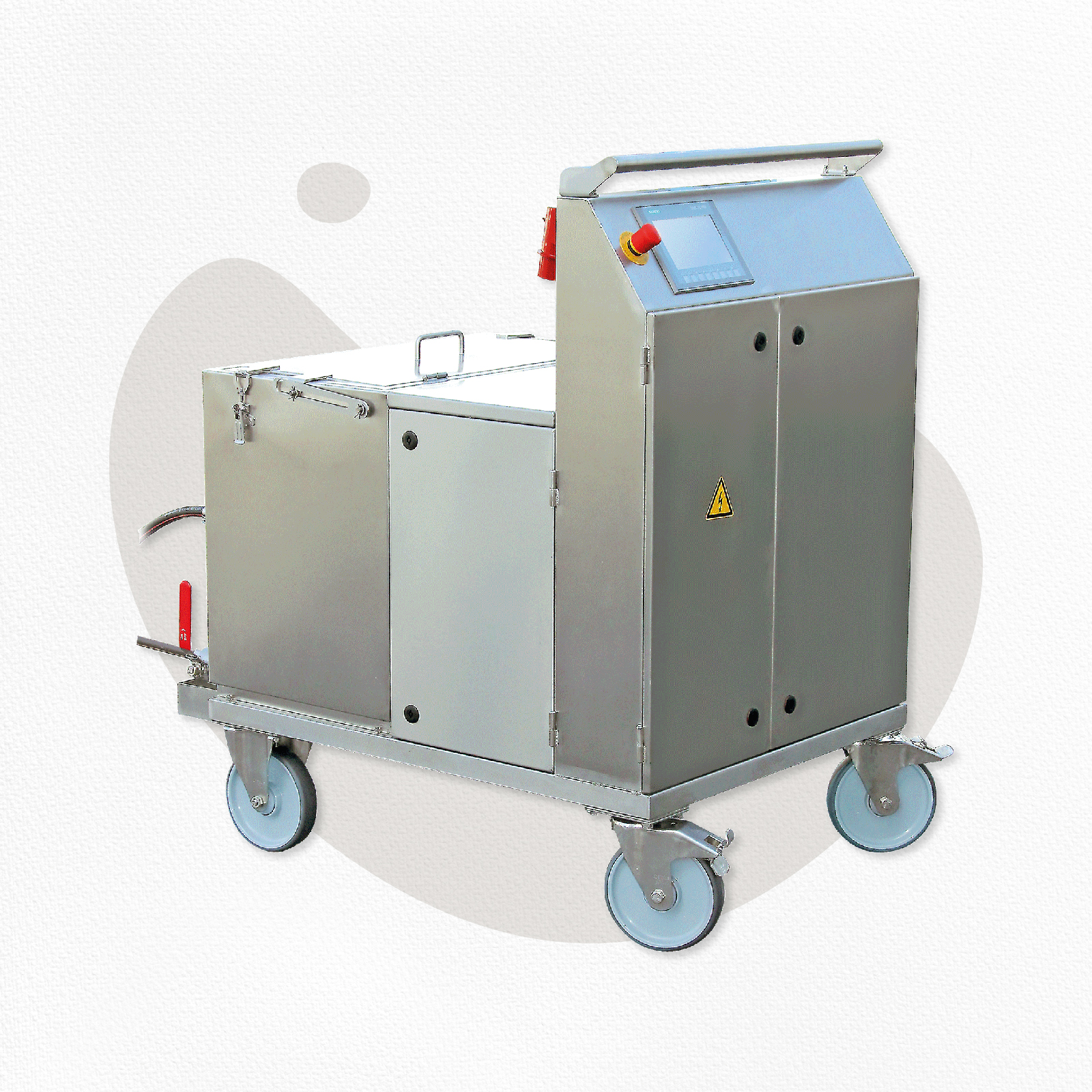

The RWR 80 L KST Fully Automatic PLC is the ideal solution for thorough cleaning of internal circulation systems in plastic injection molding tools, heat exchangers, and pipes. Its PLC control enables a fully automatic process and offers a wide range of adjustable parameters for maximum flexibility.

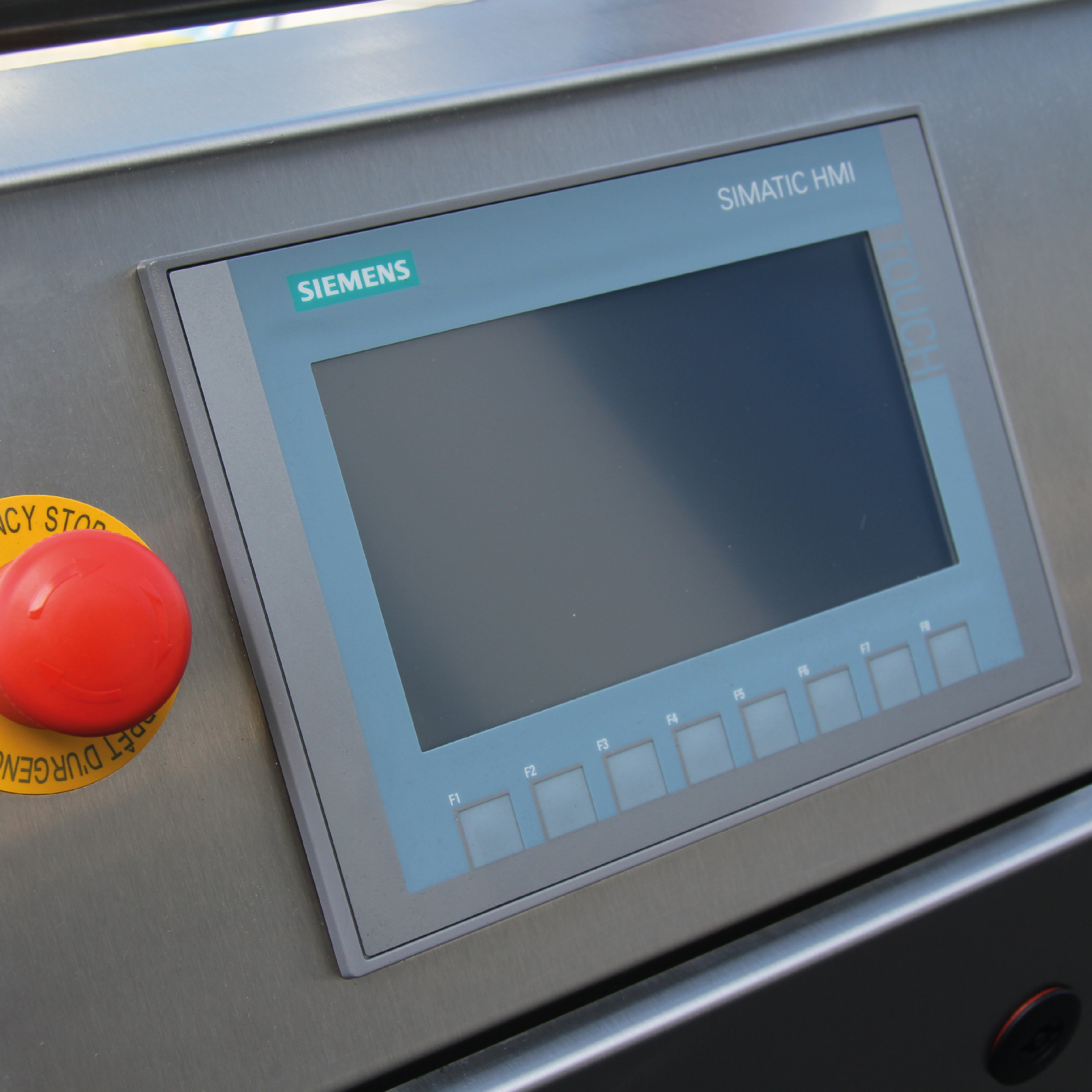

This state-of-the-art cleaning system provides a visual display of the 5-stage process program and allows a wide range of parameters to be set, such as the processing temperature (adjustable up to a maximum of 60 °C), automatic flow direction change, and integrated rinsing device for corrosion protection. Thanks to its compact size, noise reduction through full cladding and tank insulation, it is space-saving, quiet, and efficient.

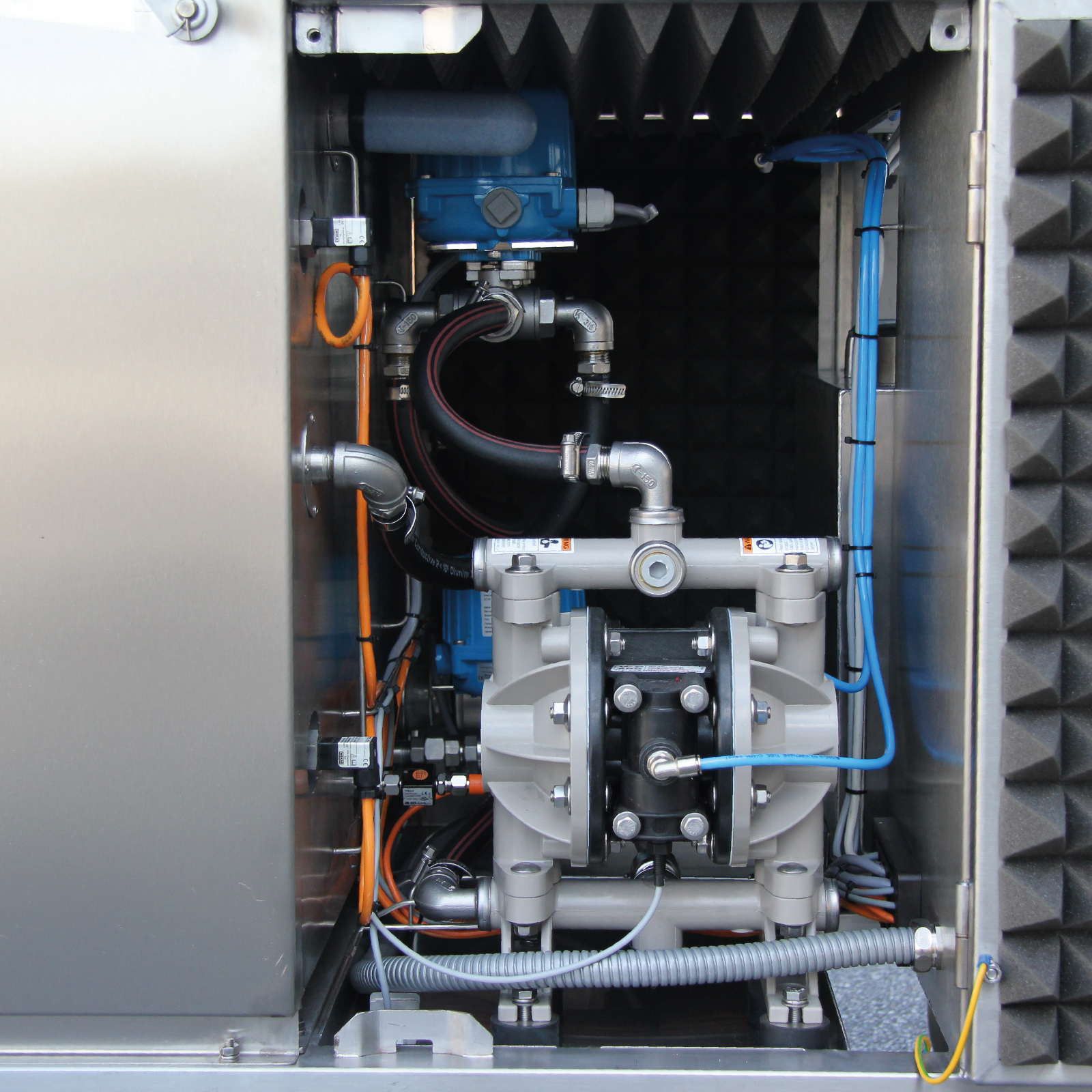

Other notable features include a constant compressed air connection for the diaphragm pump, flow measurement of the channels/pipes, and an operating hour counter.
Recommended pipe cleaning agents:
- Power Cleaner DB (Exclusively for steel circuits – dissolves limescale and rust)
- Power Cleaner 400 (Non-ferrous metal and aluminum circuits – dissolves limescale and rust)
- Power Cleaner KST 2.0 (Interim cleaning – removes limescale and rust)
- CB 100 or CB 100 Alu (All-rounder for steel or aluminum oil circuits – dissolves oil cracking)
All the advantages of the RWR 80 L KST fully automatic PLC:
- Automated process: PLC control for a fully automatic pipe cleaning process.
- Adjustable parameters: Flexible adjustment of processing temperature, flow direction change, and more.
- Integrated rinsing device: For corrosion protection and optimal cleaning results.
- Compact size: Space-saving and easy to handle.
- Noise level reduction: Full enclosure reduces noise level.

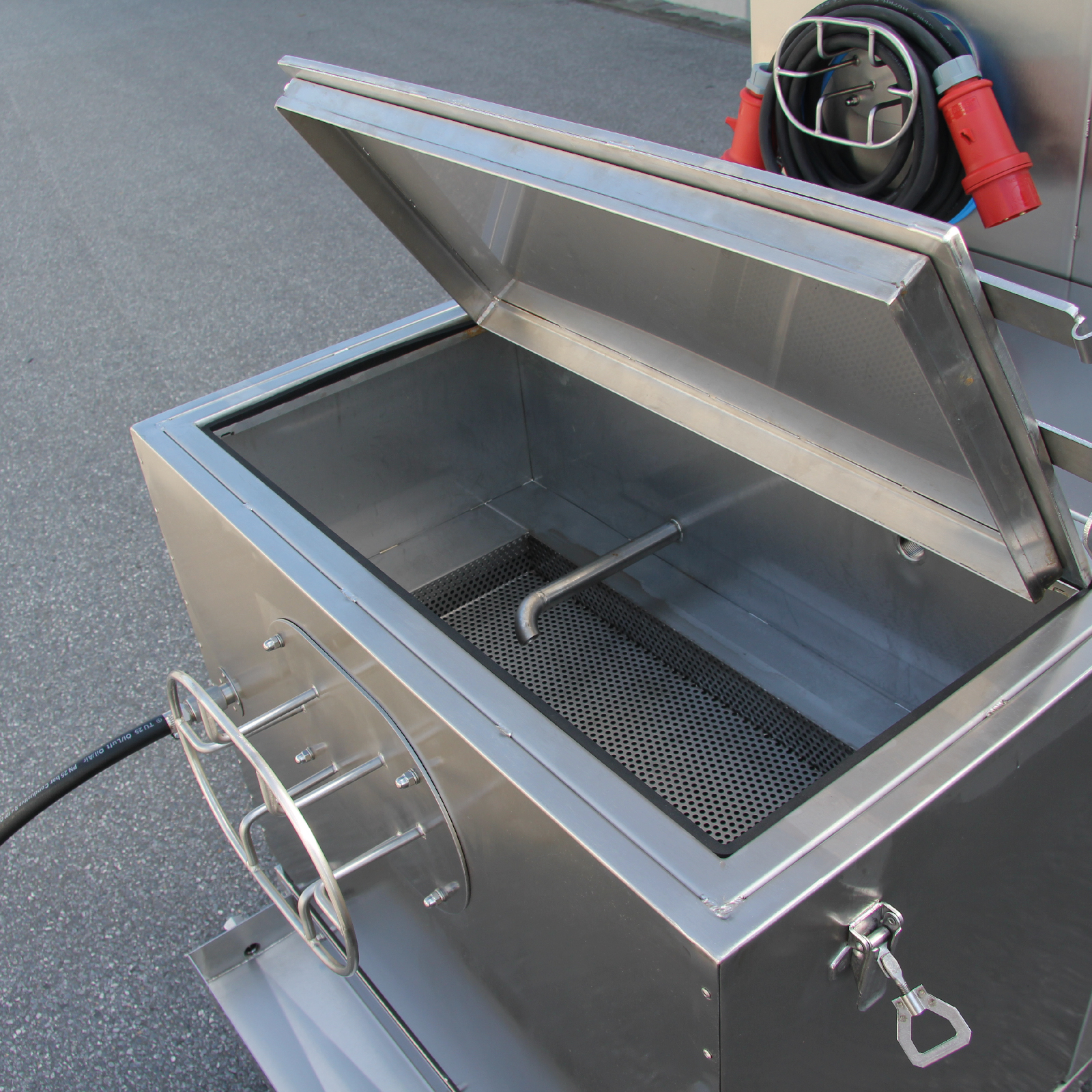

- Tank insulation: Increased efficiency and temperature control.
- Constant compressed air connection: For reliable performance of the diaphragm pump.
- Flow measurement: Monitoring of the cleaning process.
- Operating hours counter: For checking and planning maintenance intervals.
| Mechanical systems |
automatic |
|---|---|
| Quantity of parts |
Single Parts |
| Component geometries |
Whole Components (without Dismantling) |
| Quality seal Systems |
Service packages available, Stainless Steel |
| Available for Testing or Rental | Yes |
| Maximum Filling Quantity | 80 L |
| Tank Material | V2A Edelstahl |
| Electrical Connection | 400 V, 50 Hz |
| Heating | 4,5 kW |
| Flow Rate | 25l pro Minute |
| Temperature (Preset) | 60 °C |
| Total Weight without Tank Filling, Payload and Additional Equipment approx. | 110 kg |
- The RWR 80 L KST fully automatic PLC has been developed for use in plastic injection molding and can be used wherever cooling channels (circulation systems, pipes, tubes) need to be cleaned
- Oil cooler systems
- Plastic injection molding dies
Hersteller:
Bio-Circle Surface Technology GmbH
Berensweg 200
33334 Gütersloh
Bio-Circle Surface Technology GmbH
Berensweg 200
33334 Gütersloh
