This product is available in various packaging sizes.

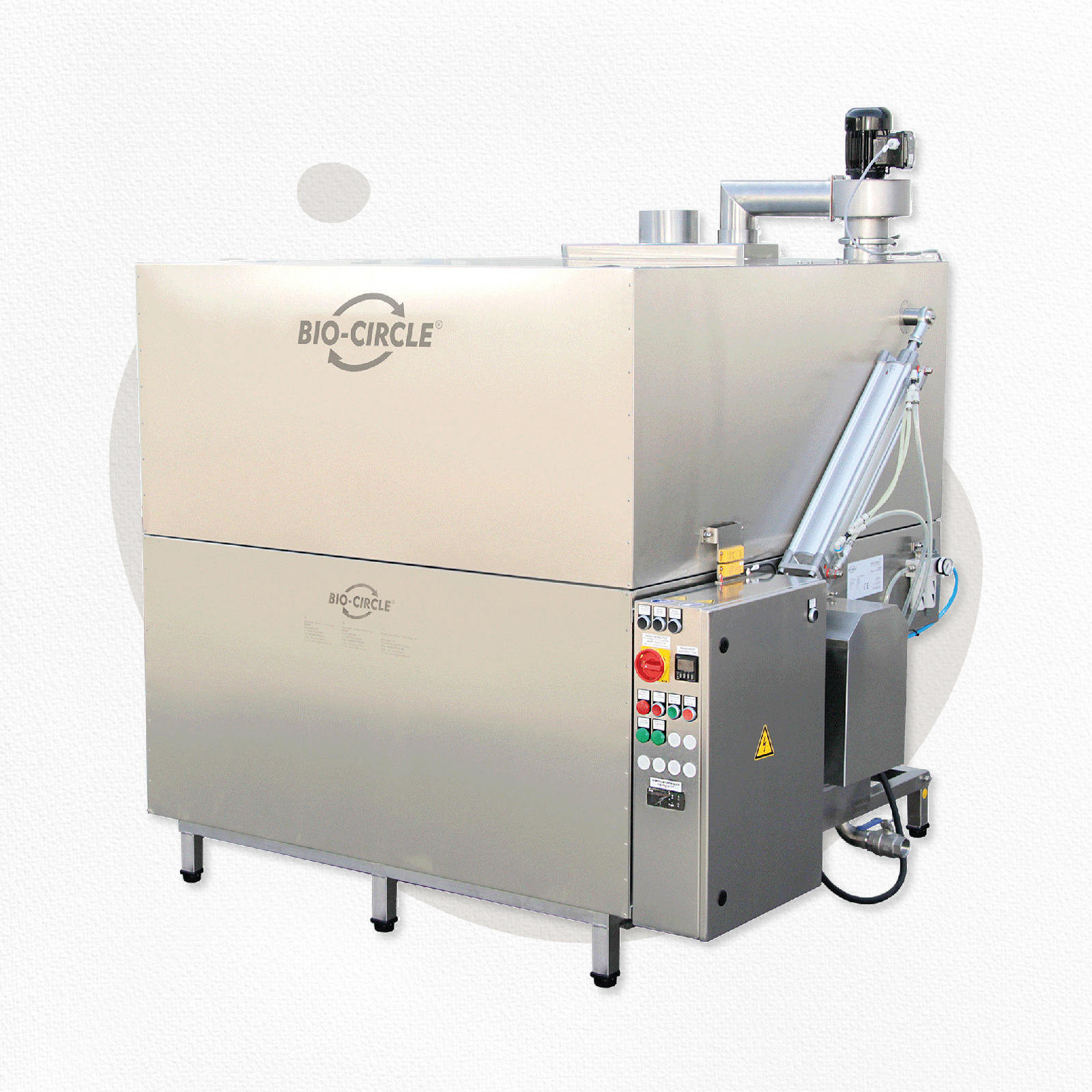

HTW 1200 Max Eco
Powerful high-pressure spray system for thorough cleaning and degreasing!
The maintenance-friendly high-pressure spray system of the HTW-II hot water parts washer is equipped with a three-dimensional nozzle system. It ensures thorough cleaning and degreasing of tools and other parts in maintenance, production, and manufacturing areas.
Product details
Description
Powerful high-pressure parts washer for thorough cleaning and degreasing!
The maintenance-friendly high-pressure spray system of the HTW-II hot water parts washer (equipped with a three-dimensional nozzle system) ensures thorough cleaning. Furthermore degreasing of tools and other parts in maintenance, production, and manufacturing areas.
The modular system of the HTW allows you to upgrade your hot water parts washer made entirely of stainless steel. The driven rotating basket and the spray pressure ensure that the Bio-Circle cleaners have an optimal effect on the items being cleaned.
The HTW-II combines reliable quality with innovative technology. It is made entirely of stainless steel, powerful, and easy and safe to operate and handle. This is also reflected in the maintenance-friendly technology and practical equipment components of the high pressure parts washer.
All the advantages of the hot water parts washer:
- Unbeatable cleaners: A variety of water-miscible and label-free cleaners tailored to your application.
- Risk-free testing: Rental machines and cleaners can be tested on site, with up to 3 months’ rental credit applied to the purchase price.
- Competent support: Reliable and competent support from the field service team.
- High-quality technology: Electrically driven rotating basket with motor protection and powerful stainless steel pump.
- Robust construction: Made entirely of stainless steel, easy to maintain and durable.
- Energy efficiency: Optimized energy use and high efficiency.
- Safety and simplicity: Easy handling and safe operation.
- Corrosion protection: Temporary preservation of workpieces through corrosion protection for aqueous systems.
| PPT |
Hot Water Parts Washing Machine |
|---|---|
| Mechanical systems |
automatic |
| Quantity of parts |
Larger series, low quantities, Single Parts, Small Series |
| Component geometries |
Uncomplicated Parts, Whole Components (without Dismantling) |
| Quality seal Systems |
Bio-Circle Use, Service packages available, Stainless Steel |
| HTWM |
Hot Water Parts Washing Machine |
| Available for Testing or Rental | Yes |
| Usage Rental Possible | Yes |
| Depth | 1495 mm |
| Loading Height | 830 mm |
| Basket Diameter Inside approx. | 1175 mm |
| Basket Height | 115 mm |
| Maximum Usable Height | 600 mm |
| Maximum Filling Quantity | 485 L |
| Heating | 9 kW |
| Pump | 2,2 kW |
| Flow Rate | 12 m³/h |
| Delivery Head | 40 m |
| Maximum Load Crane Loading | 1000 kg |
| Total Weight without Tank Filling, Payload and Additional Equipment approx. | 500 kg |
| Frequency | 50 Hz |
- Across all industries
- Thorough cleaning and degreasing of tools and other parts
- in maintenance, production, and manufacturing areas.
Hersteller:
Bio-Circle Surface Technology GmbH
Berensweg 200
33334 Gütersloh
Bio-Circle Surface Technology GmbH
Berensweg 200
33334 Gütersloh
