This product is available in various packaging sizes.

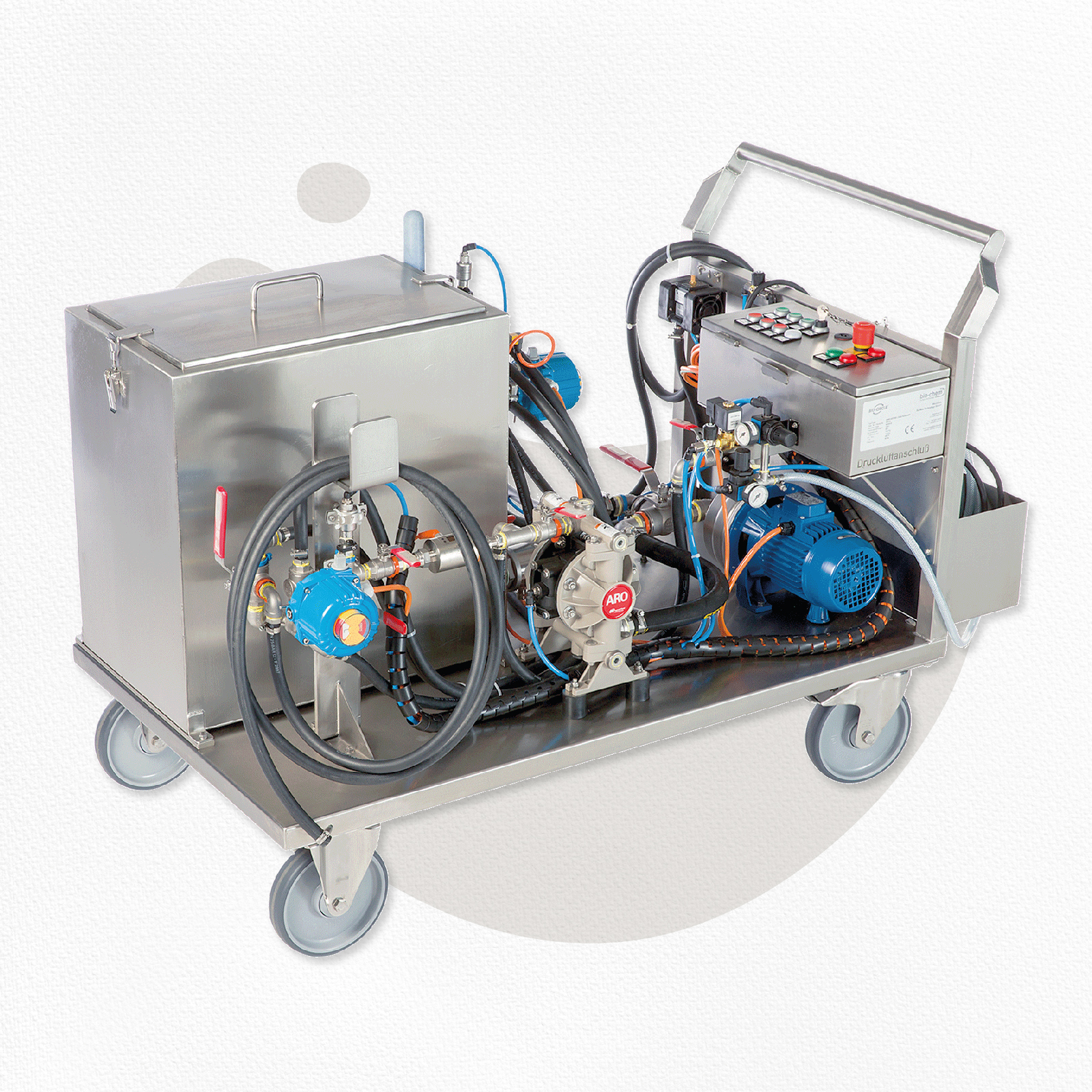

RWR 80 L KST Dual Automatic
The RWR 80 L KST Dual Automatic is the ideal solution for cleaning cooling circuits in polymer injection molding tools. With its dual automatic system, compressed air diaphragm pump, and digital display, it offers a highly specialized cleaning solution for the polymer processing industry.
Product details
Description
Efficient cleaning of cooling circuits in polymer injection molding tools!
The RWR 80 L KST Dual Automatic has been specially developed to meet the challenges of cleaning cooling circuits in plastic injection molding tools. This system enables efficient cleaning without the need for time-consuming disassembly. Thanks to its dual automatic function, compressed air diaphragm pump, and digital display, it offers a precise and reliable cleaning solution.Bio-Circle’s RWR KST systems are designed to clean internal circulation systems without dismantling. With a flow meter and an integrated circulation system for corrosion protection, they offer an optimal cleaning solution for plastic injection molding tools.rn
Recommended cleaning agents:
- Power Cleaner DB (Only for steel circuits – dissolves limescale and rust)
- Power Cleaner 400 (Non-ferrous metal and aluminum circuits – dissolves limescale and rust)
- Power Cleaner KST 2.0 (Interim cleaning – dissolves limescale and rust)
- CB 100 or CB 100 Alu (All-rounder for steel or aluminum oil circuits – dissolves oil cracking)
All the advantages of the RWR 80 L KST Dual Automatic:
- Specialized cleaning: Designed for cleaning cooling circuits in polymer injection molding tools.
- Dual automatic: Automatic sequence for precise cleaning results.

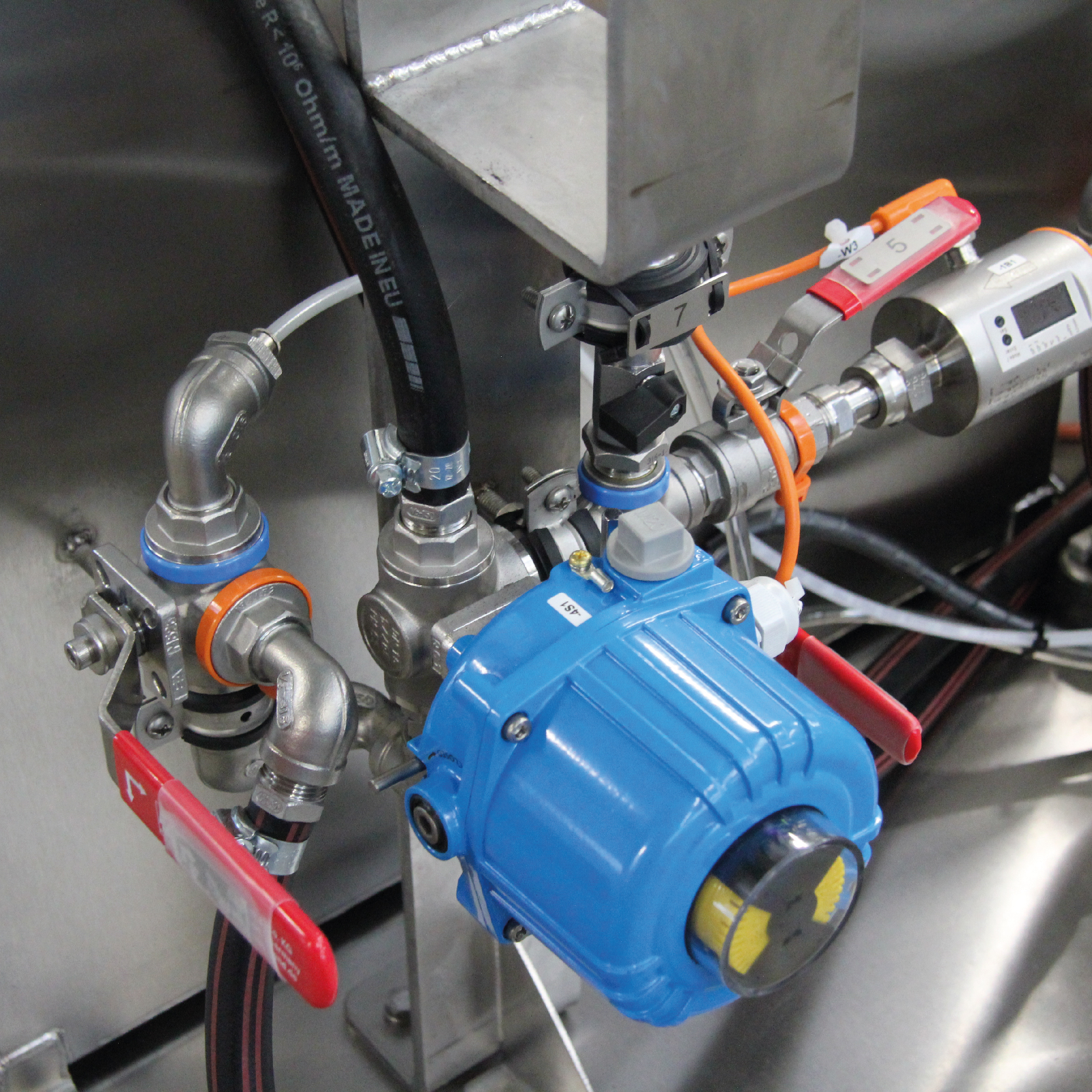

- Compressed air diaphragm pump: Efficient cleaning even at low flow rates.

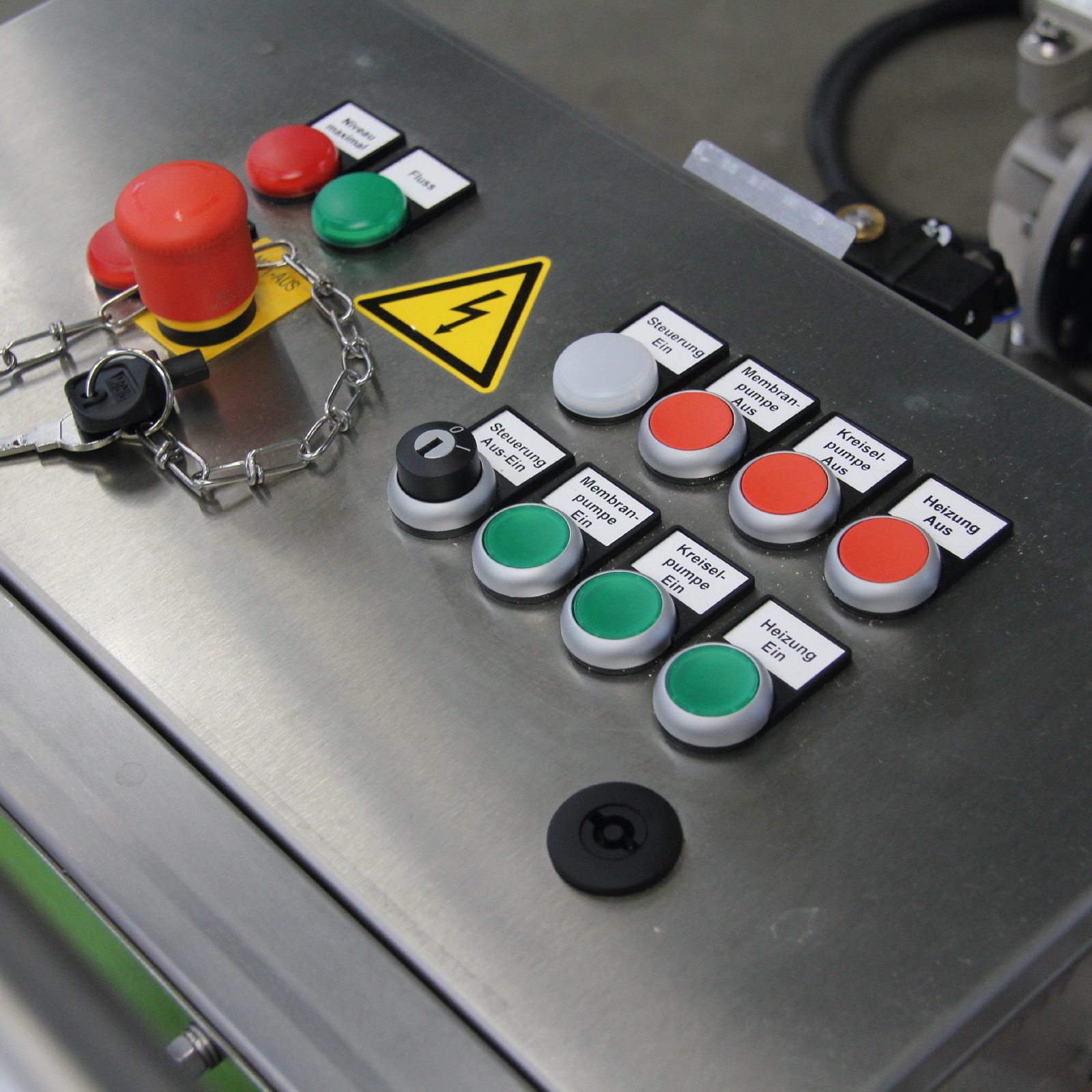

- Digital display: Clear visualization of the cleaning process.
- Integrated rinsing circuit: Protects the mold from corrosion.
Special features for polymer injection molding:
- Compressed air bypass: Blows leftover cleaning medium back into the tank.
- Flow direction change: Rinses dissolved particles out of the mold for thorough cleaning.
- Integrated rinsing circuit: Protects the mold from
| Mechanical systems |
automatic |
|---|---|
| Quantity of parts |
Single Parts |
| Component geometries |
Whole Components (without Dismantling) |
| Quality seal Systems |
Bio-Circle Use, Service packages available, Stainless Steel |
| Available for Testing or Rental | Yes |
| Usage Rental Possible | Yes |
| Depth | 770 mm |
| Minimum Filling Quantity | 60 L |
| Maximum Filling Quantity | 80 L |
| Tank Material | V2A Edelstahl |
| Electrical Connection | 400 V, 50 Hz |
| Heating | 4,5 kW |
| Pump | 0,37 kW |
| Flow Rate | 56 L pro Minute |
| Temperature (Preset) | 60 °C |
| Total Weight without Tank Filling, Payload and Additional Equipment approx. | 130 kg |
- The RWR KST was developed for use in polymer injection molding.
- However, it is also generally suitable for use wherever narrow cooling circuits need to be cleaned.
Hersteller:
Bio-Circle Surface Technology GmbH
Berensweg 200
33334 Gütersloh
Bio-Circle Surface Technology GmbH
Berensweg 200
33334 Gütersloh
