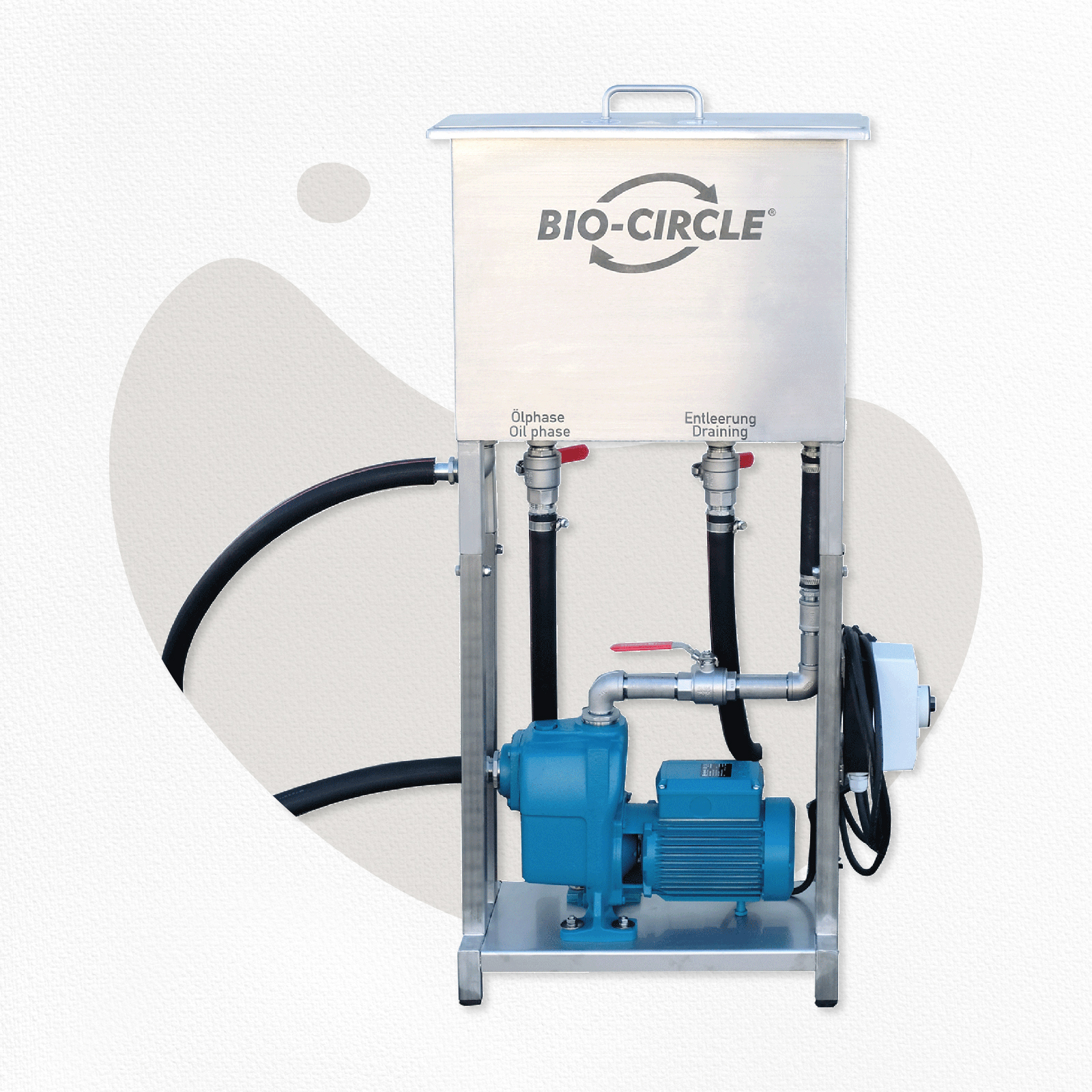

Parallel Plate Separator (PPT) Kompakt
The PPT Compact Parallel Plate Separator is a powerful and economical device for extending the service life of water-based process baths. It automatically and effectively removes oil, sludge, suspended solids, and solids from process baths during operation.
Product details
Description
Efficient extension of the service life of water-based process baths!
The Parallel Plate Separator (PPT) Compact is the ideal solution for increasing demands on the purity and service life of water-based cleaning and degreasing baths, cutting coolant emulsions, and other industrial fluids.
The device automatically and effectively removes oil, sludge, suspended solids, and solids from moving and warm process baths during plant operations. This protects employees from unpleasant odors and contamination by preventing uninhibited bacterial growth.
The PPT works on the basis of a combined effect of gravity and coalescence, without the use of chemical additives. This technology makes it possible to achieve very low residual concentrations of the secondary phase at the outlet. Solids are guided to the bottom of the device by the effect of gravity.
All the advantages of the Parallel Plate Separator Compact:
- Effective cleaning: Automatically and effectively removes oil, sludge, suspended solids, and solids.
- Longer service life: Extends the service life of cleaning and degreasing baths.
- Employee protection: Prevents unpleasant odors and contamination by reducing bacterial growth.
- Economical and environmentally friendly: Works without chemical additives, thus saving costs.

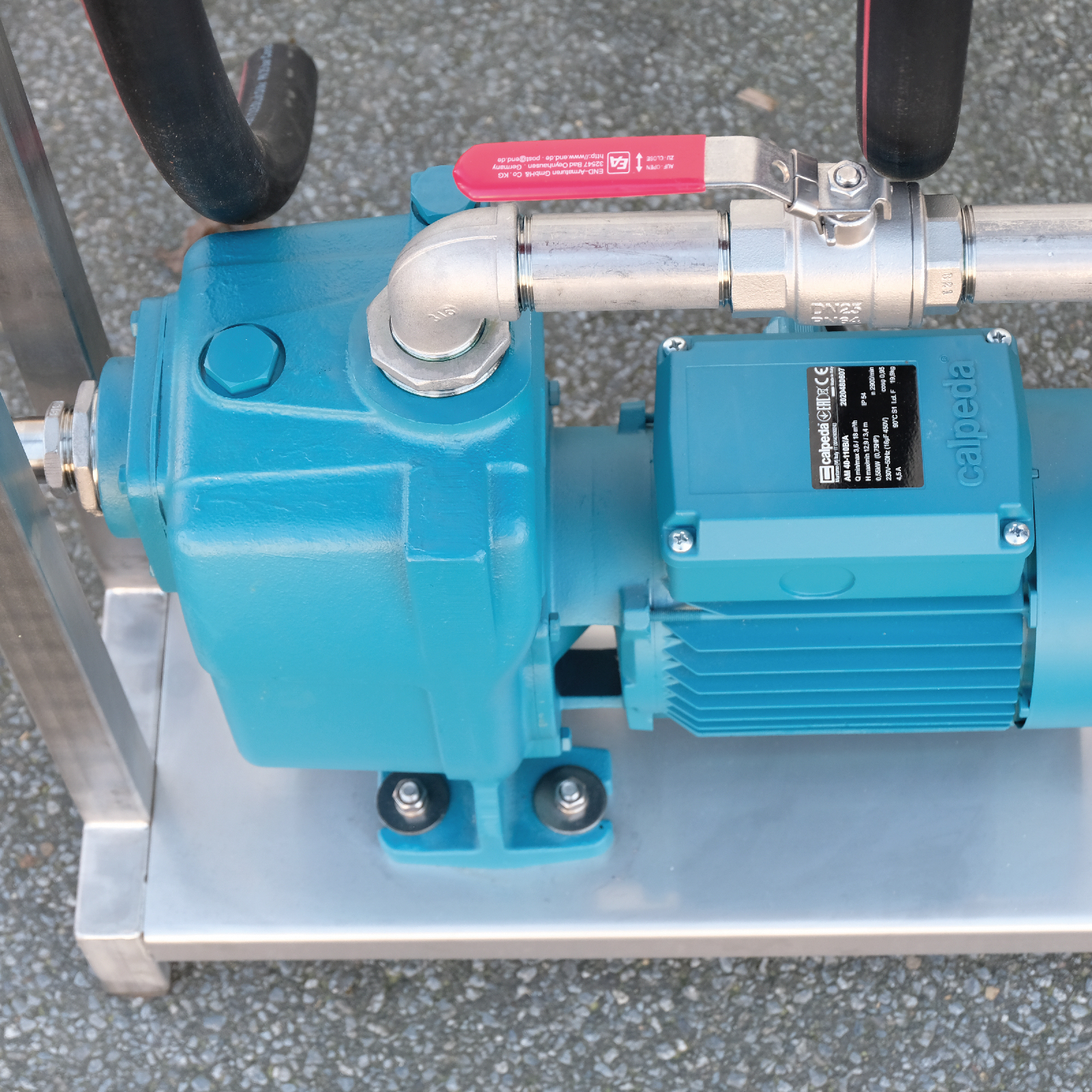

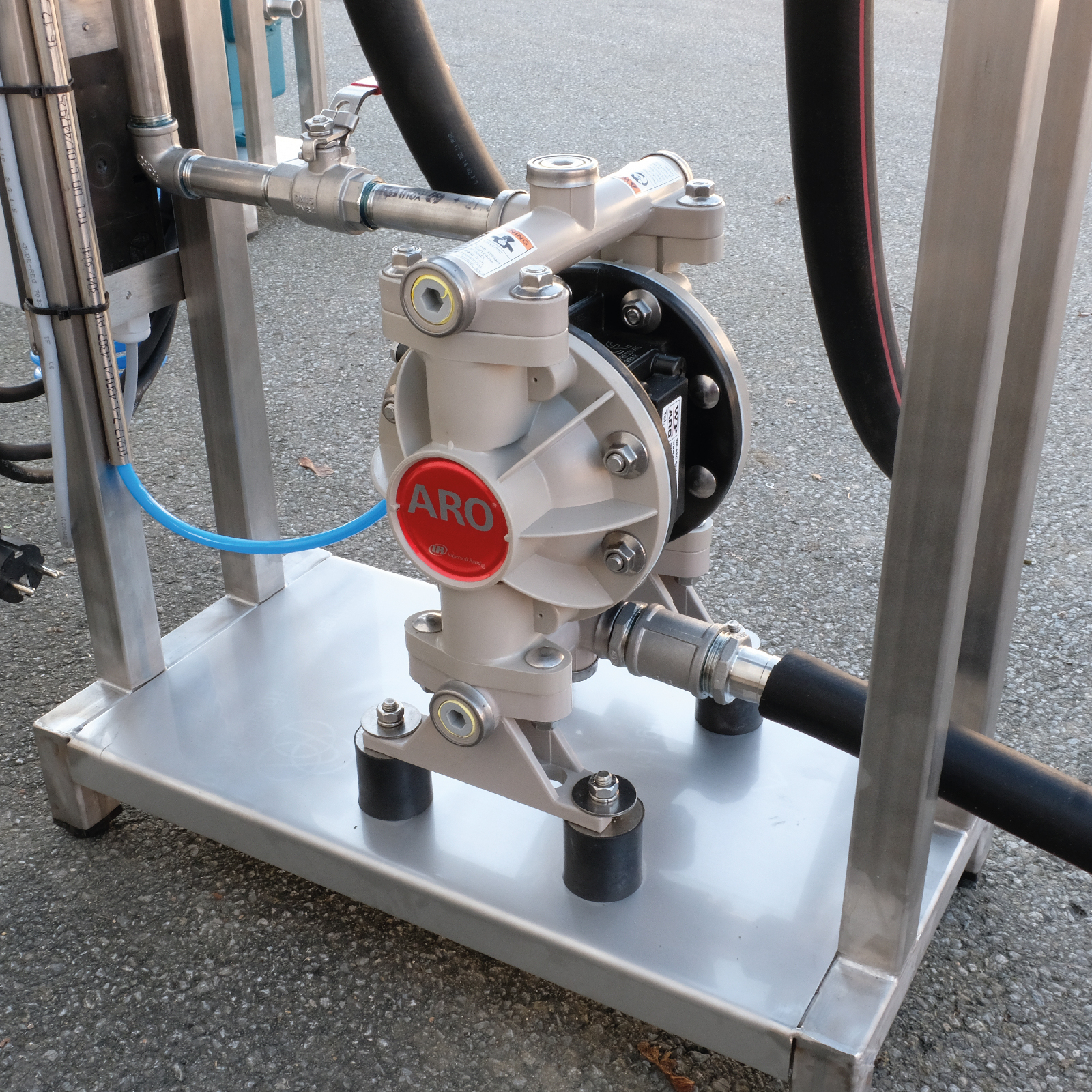

- Customizable: Equipped with magnetic centrifugal or compressed air diaphragm pumps and a suction device.
- Combined effect: Uses gravity and coalescence for effective separation without chemical additives.
- Solid removal: Solids are guided to the bottom of the device by gravity.
- Compact design: Space-saving design for easy integration into existing systems.
| Types of contamination |
Oil & Grease |
|---|---|
| Quantity of parts |
Larger series, low quantities, Single Parts, Small Series |
| Quality seal Systems |
Stainless Steel |
| Flow Rate | 200 l pro Stunde |
| Temperature (Preset) | 90 °C |
- Cross-industry
- For cleaning and degreasing baths
Hersteller:
Bio-Circle Surface Technology GmbH
Berensweg 200
33334 Gütersloh
Bio-Circle Surface Technology GmbH
Berensweg 200
33334 Gütersloh
