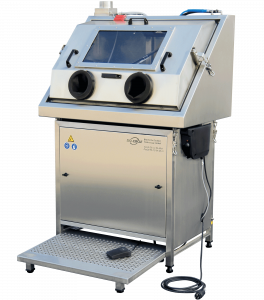

BIO-CIRCLE HP

G30028

The BIO-CIRCLE HP parts washer with brush can be operated with the lid open and closed. The washing chamber works with the power of high-pressure cleaning. It is in line with circular economy and cleans parts, also heavily soiled and with complex geometries, made of steel, stainless steel, plastic, etc. from oil and grease.

  • Manual cleaning by means of continuous-flow brush with the lid open or closed
  • Cleaning temperature 45 °C
  • Insulated tank ► prevents heat loss
  • From 8 up to 80 bar adjustable working pressure, optimal handling via a high-pressure gun
  • Payload up to 350 kg
  • Loading by crane possible
  • Integrated oxygen supply ► significantly longer bath life due to microorganisms
  • Optimal cleaner and degreaser: BIO-CIRCLE L Turbo ► VOC-free and non-labelled ► Increase of occupational safety, reduction of operating costs
  • Manually operated rotary table available as an option

Work made easier for the user! Because the components get brilliantly clean and the work process is simple, fast and safe (using the recommended cleaners)

Product Details

The BIO-CIRCLE HP is the ideal cleaning device for removing all kinds of contaminations from...more
BIO-CIRCLE HP

The BIO-CIRCLE HP is the ideal cleaning device for removing all kinds of contaminations from heavily contaminated parts with complex geometries. Cleaning at high pressure of up to 80 bar will remove even the most persistent of contaminations, such as degraded oils and resinous greases, without effort. Moreover, the high pressure will easily penetrate complex geometries, thus efficiently dissolving the contamination. This makes it the perfect solution for cleaning ball bearings and similar parts.

The factory-set cleaning temperature of 45°C/113°F guarantees the best price/performance ratio. The insulated tank prevents unnecessary heat losses and saves energy.

The LED interior lighting provides good lighting conditions, which enables the user to also see complex part geometries in all detail. The interior is equipped with a fan for aeration, and the window pane is kept continuously clear by means of an air nozzle with a strong airflow. In addition, the pane can be freed from splashes by means of a screen wiper.

The device is operated by means of an easy-to-reach foot switch. A retractable step provides optimal comfort of use for users of different heights.

Crane loading is no problem; the payload is 350 kg. As an option, a rotatable stainless steel disc will support the user when cleaning heavy parts.

Suitable cleaners:

Of course, selecting the right cleaning device is only half the job. Choosing the perfect cleaning fluid for the application at hand is equally important. That is why we offer a variety of suitable cleaning fluids for you to choose from:

  • BIO-CIRCLE L Turbo
  • BIO-CIRCLE L Ultra F
  • CB 100 range
  • STAR and ALUSTAR ranges

Related links to "BIO-CIRCLE HP"

Tips & Hints

Crane loading possible Turntable possible Test unit = yes Rent device = yes

Seals of approval
Only available in Germany
For further information, please contact your Bio-Circle partner
Stainless Steel
Technical specificationmore

Technical specification

Type of contamination: Carbon residues, soot, Corrosion protection, Dust, abrasion particles, Limescale, rust (mineral), Oil, grease, Polishing pastes, Resin, wax, Separating agents, Soldering agent
Amount of parts: Individual parts, Small series, small quantities
Seal of approval: Bio-Circle leasing, Bio-Circle Service available, Stainless Steel
Component geometry: Parts with narrow gaps(<1mm), Scooping parts, Uncomplicated parts, Whole components (without dismantling)
Payload max. loading the cleaning device by crane is possible!:350 kg
Usable work surface :860 x 580 x 480 mm
Working height:950 mm / 1210 mm
Operating temperature max.:45 °C
Füllmenge maximal:100 L
Function height:1083-1228 mm
Tank material:V2A Stainless Steel
Power supply:230 V, 50 Hz
Pump:1,6 kW, AD = bis 80 bar
Total weight of the machine without tank filing:250 KG
Extraction fan volume flow :2,6m³/h
Maximum air consumption screen cleaning:22,5m³/h
The BIO-CIRCLE HP can be used wherever heavily contaminated parts with complex geometries...more

Field of application

The BIO-CIRCLE HP can be used wherever heavily contaminated parts with complex geometries require cleaning. The high precision of manual cleaning in combination with a pressure of 40 bar facilitates efficient removal of highly persistent contaminations, such as special greases and burnt-in oils.

Just place the components in the BIO-CIRCLE HP and clean with high pressure.  The suction...more

Usage

Just place the components in the BIO-CIRCLE HP and clean with high pressure.

The suction and LED interior lighting provide good lighting conditions. In high-pressure mode, air from a nozzle is blown automatically onto the window pane which guarantees a clear view. Should heavy splashing caused by cleaning obstruct the view, the pane can be cleaned by means of an additional screen wiper.

After pressure-washing, the parts can be subjected to a visual inspection – minor remaining contaminations can then also be removed with the flow brush.

After the cleaning process, excess cleaning fluid should be removed from the component with the aid of the compressed air gun in order to minimize discharge losses and to save costs.
