RWR 500 L Rohr- und Wärmetauscher

G29400

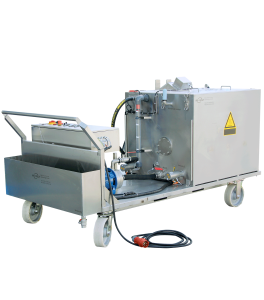

The RWR systems by Bio-Circle are the perfect solution for the cleaning of internal circulation systems (pipes, heat exchangers and temperature control units) – and without any dismantling. Using the RWR guarantees that the ducts of your system remain clean, which ensures effective functioning.

  • Ready for connection, with acid- and lye-resistant hoses
  • Mobile device, mounted on a stainless-steel dolly with rubberized castors
  • Easy handling: no time-consuming dismantling – just connect feed- and return lines and start cleaning
  • VA fluid container with integrated drain
  • VA heating with adjustable thermostat (up to 90 °C/194 °F), factory-set at optimal 60 °C/140 °F
  • Washing liquid tank capacity: 550 L
  • Recommended cleaners: Power Cleaner DB, Smoke Resin Remover DB

Product Details

Over time, limescale, corrosion and other contaminations settle and form incrustations, which...more
RWR 500 L Rohr- und Wärmetauscher

Over time, limescale, corrosion and other contaminations settle and form incrustations, which leads to cross-section constrictions – the system can no longer realize its full performance. Using the RWR guarantees that the ducts of your system remain clean, which ensures effective functioning

Related links to "RWR 500 L Rohr- und Wärmetauscher"

Seals of approval
For further information, please contact your Bio-Circle partner
Stainless Steel
Technical specificationmore

Technical specification

Type of contamination: Limescale, rust (mineral), Oil, grease
Amount of parts: Individual parts
Seal of approval: Bio-Circle Service available, Stainless Steel
Füllmenge maximal:500 L
Width:1200
Tank material:V2A Edelstahl
Power supply:400V / 50 Hz
Heating:2 x 7,5 kW
Pump:3 kW
Flow rate:12,6 m³/h
Temperature (preset):60 °C
Total weight of the machine without tank filing:450 KG
Across all sectors of the industry Maintenance of system ducts more

Field of application

  • Across all sectors of the industry
  • Maintenance of system ducts
For the cleaning of pipes, heat exchangers, and temperature control units Just connect the...more

Usage

  • For the cleaning of pipes, heat exchangers, and temperature control units
  • Just connect the ducts to the feed- and return lines of the RWR and have the cleaner flush the system by means of the integrated centrifugal pump in a circulation process, no time-consuming dismantling required
  • Recommended cleaners: Power Cleaner DB, Smoke Resin Remover DB
